Air-Handling Spaces (Air Plenums)    NEMA low smoke density

There is an increasing awareness of safety hazards resulting from the effects of burning materials installed in spaces used for the exchange of environmental air. Model codes now include specific requirements for combustible products installed in these areas. The requirements reflect both the contribution of individual products and the cumulative impact of all products installed in such areas.

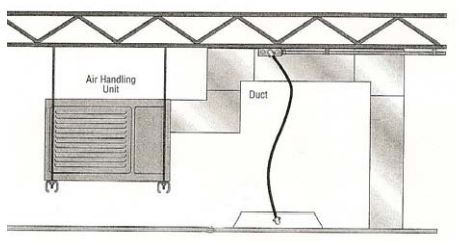

NEMA air handling diagram

Cable ties and their associated fixing devices are widely used for the management of wire and cable, and as components of equipment installed in air-handling spaces (air plenums). These air-handling spaces generally include those above a drop ceiling or below a raised floor. However, they may also be used in any other such space where wires or cables are permitted to be installed. Although the word “plenum” is often used to describe all air-handling spaces, wiring systems are never permitted to be installed in a true plenum. A “plenum” is described in NFPA 70, the National Electrical Code®, as a duct used to transport dust, loose stock, or flammable vapors, or for ventilation of commercial-type cooking equipment.

Nonmetallic products installed in air-handling spaces are now expected to have verified properties that limit the amount of smoke and heat that they generate when exposed to a fire. Continuous products such as nonmetallic covered wire and cable are subjected to a test that also takes into consideration their potential to propagate flame over distance. However, this test is not appropriate for discrete products such as cable ties that are applied intermittently. Nevertheless, in consideration of the cumulative effects of all combustible materials installed in air-handling spaces, even small discrete components such as cable ties must have their low-smoke and heat generating properties verified by test.

The model code containing the requirements for products installed in air-handling spaces is NFPA 90A, Standard for Installation of Air-Conditioning and Ventilation Systems. The latest edition of NFPA 90A specifies that the means for verifying low-smoke and heat generating properties for cable ties is UL2043, Fire Test for Heat and Visible Smoke Release for Discree Products and Their Accessories Insalled in Air-Handling Spaces. The results of this test are an index of maximum allowed values specified in NFPA 90A. Included are maximum values for peak rate of heat release, peak normalized optical density of smoke and the average normalized optical density of smoke.

A question that is often asked of manufacturers is: “Are red or maroon colored cable ties the only ones that can be used in air-handling spaces?” The simple answer is no. However, prior to the development of the present performance and verification requirements, cable ties molded from specialized materials with known low smoke properties were often specified. These products are readily identifiable by their maroon color. Among inspection authorities this color code identification has become commonplace. Importantly however, the more recent verification requirements and associated markings should not be overlooked, regardless of color.

How do you identify a cable tie that is suitable for use in air-handling spaces? Since NFPA 90A only requires verification for combustible cable ties, all metallic cable ties can be assumed to be suitable for use wherever combustible wire and cable are permitted to be installed. In the National Electrical Code®, these areas are described in Section 300.22 (B), (C), and (D). Nonmetallic or composite cable ties, and metallic cable ties with a nonmetallic coating, are required to meet the requirements of UL 2043. Compliance must be verified by a Nationally Recognized Testing Laboratory (NRTL). These products are only suitable for installation in areas as described in Section 300.22 (C) and (D) of the National Electrical Code®. Cable ties and fixing devices that have been verified as suitable for use in air-handling spaces are provided with the following markings as appropriate.

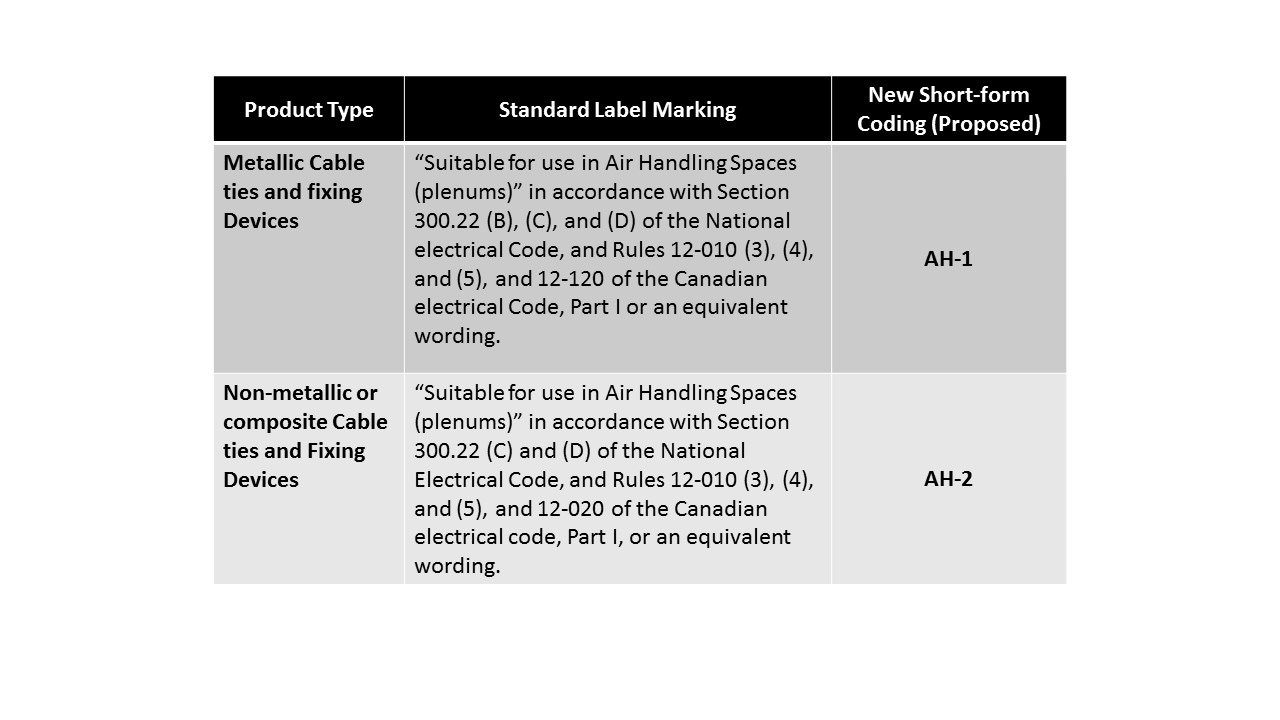

NEMA table 1a

As the new NFPA 90A requirements become reflected in the standard for cable ties, the markings in the table may be superseded by a simple reference indicating compliance with UL 2043 in conjunction with the certification mark of the testing laboratory.

The manufacturer should always be consulted if there is a question about the proper application of a cable tie or associated fixing device.
